Bellgrove Junction

Location type

Junction

Names and dates

Bellgrove East Junction (1875-1960)
Bellgrove Junction (1960-)

Opened on the Glasgow and Coatbridge Branch (North British Railway).
Opened on the City of Glasgow Union Railway.

Description

Bellgrove East signal box was at Bellgrove Junction, the first version being on the north side of the junction. This was replaced in 1904 when the line was quadrupled. The new box - somewhat narrower than typical boxes - was in the 'V' of the junction and surrounded by lines thanks to the complications of the passenger and goods lines. (To the west the southern of the four through lines were the passenger lines and the northern pair were the goods lines - Bellgrove Independent Tunnel.) Lines ran east as far as Carntyne with separated passenger and goods lines.

Bellgrove North signal box was at the start of the line to Springburn close to Whitevale Street. It controlled the approach to the cattle sidings alongside Reidvale Street, approach from the CGU line from the east. It was absorbed by Bellgrove East box when it was replaced in 1904.

Bellgrove West and Bellgrove East boxes were replaced with Bellgrove box in 1960, in readiness for electrification. This new box was on the south side of the junction.

Tags

Junction



Chronology Dates

  /  /1896City of Glasgow Union RailwayGlasgow and South Western RailwayNorth British Railway
City of Glasgow Union Railway absorbed and divided between Glasgow and South Western Railway and North British Railway. The point of division was College East Junction (later High Street Junction) with Glasgow St Enoch and the line to the south west passing to the GSW. North of Bellgrove Junction and Parkhead Junction [NB] went to the NBR.
06/03/1989Coatbridge Branch (North British Railway) City of Glasgow Union Railway

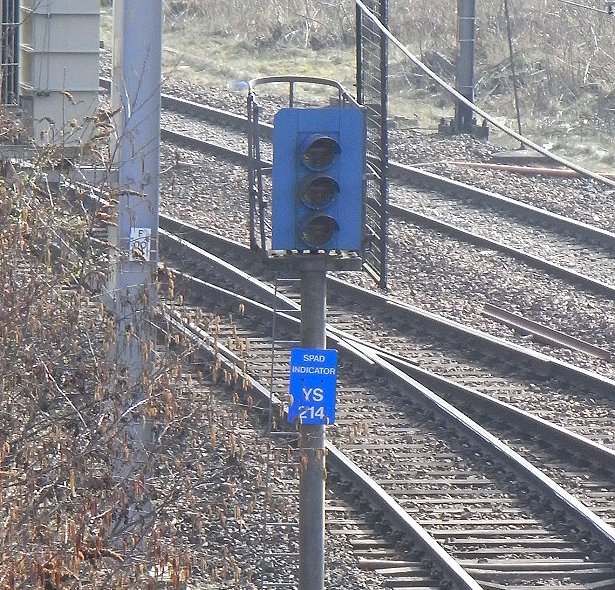

Crash at Bellgrove Junction when a train leaves Bellgrove station passing a red light (SPAD) and runs onto the single lead of the Springburn line striking a train leaving the branch. 2 were killed and 40 injured.
